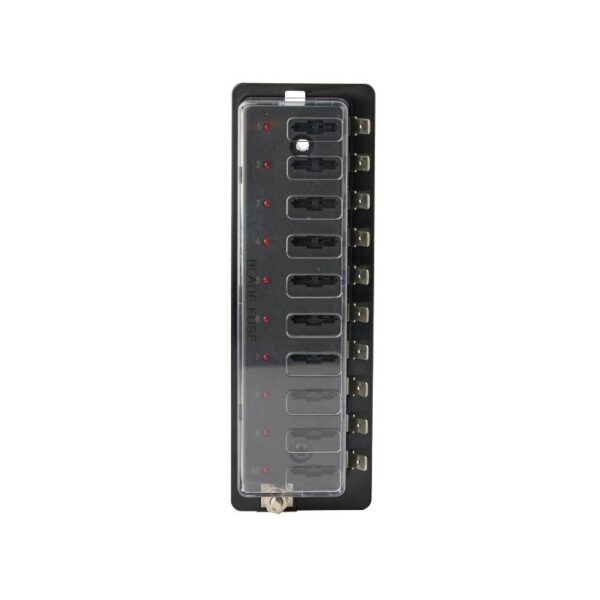

R3-76C 10-WAY FUSE BLOCKS
1. Fuse block is suitable for marines, RVs, or exterior decoration applications, with a transparent protective cover design for waterproof, dustproof, and dirt-proof
2. Red LED indicates when the fuse is broken. Negative bus provides common location for negative collection circuit. It is easy to open by pressing the latch.
2. Red LED indicates when the fuse is broken. Negative bus provides common location for negative collection circuit. It is easy to open by pressing the latch.
| Voltage | 32V DC(15 VDC) |
| Input Terminal Rating | M5 threaded studs(100A max.) |
| Output Terminal Rating | 30A max. per circuit. |
| Connection Pad Option Available | Input wire size：#4-6 AWG. Output wire size：#12-16 AWG. |
| Fuse Specification | For Blade Fuses Used Only |
| Torque Rating | 20 in-lb (2.5Nm) max. |
| Mounting Torque Rating | N/A |
| Operating Temperature | -20°C~+85°C |
