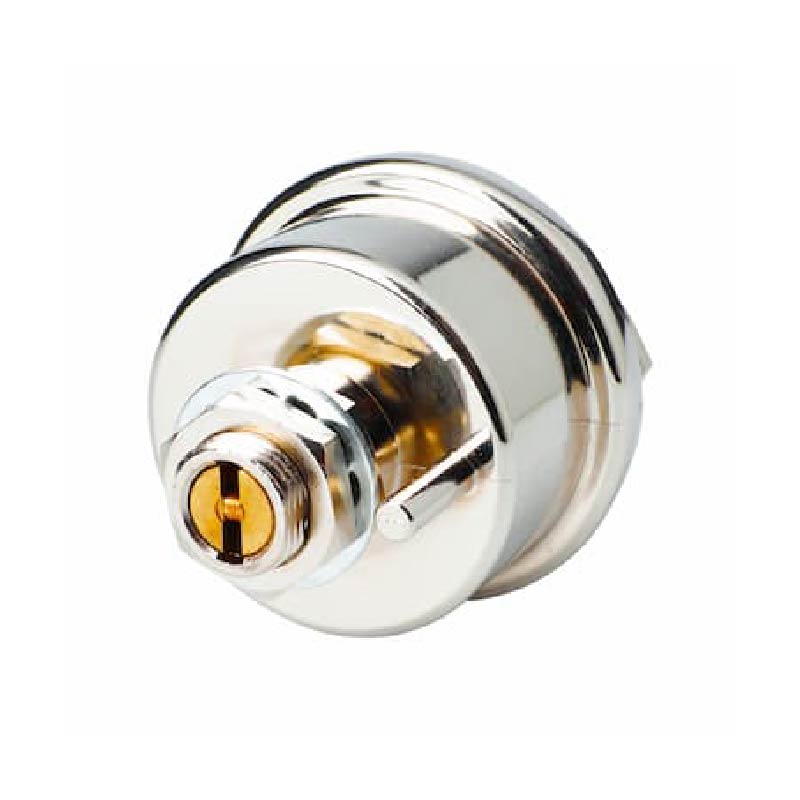

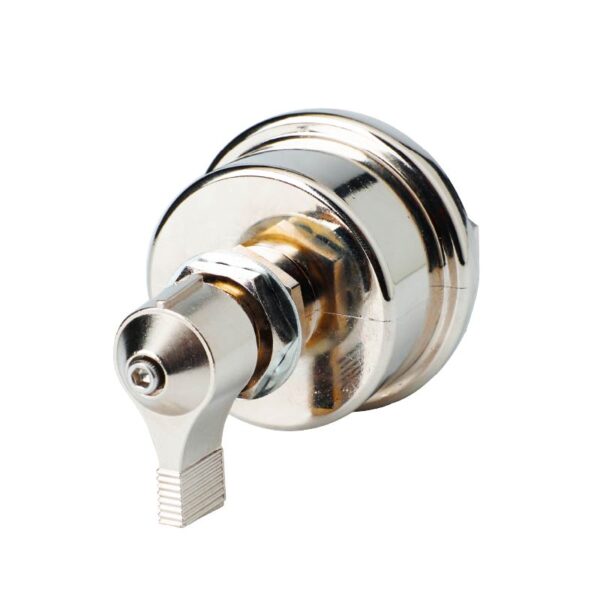

K3-39 Key Switch
1. Classic metal lever design, smooth rotation, stable feel, and provides stable current switching effect
2. Suitable for power starting of special vehicles, construction machinery and golf carts
3. Comply with RoHs standards
Specifications
| Continuous Rating | 180A 32V DC Max. |
| Intermittent Rating | 250 Amps |
| Cranking Rating | 1000 Amps 15 sec. |
| Contact Resistance | 50m ohm Max |
| Insulation Resistance | DC 500V 100M ohm Min |
| Dielectric Strength | AC 1000V 1 minute, DC 2000V 1 minute |
| Switch Function | OFF-ON |
| Operating Temperature | -30°C~+60°C |
