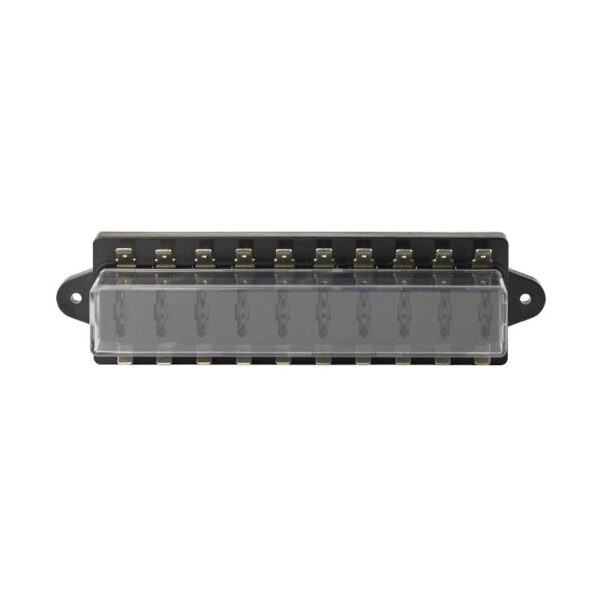

R3-76D 10-WAY FUSE BLOCKS
1. Fuse block is suitable for marines, RVs, or exterior decoration applications, with a transparent protective cover design for waterproof, dustproof, and dirt-proof
2. Red LED indicates when the fuse is broken. Negative bus provides common location for negative collection circuit. It is easy to open by pressing the latch.
Specifications
| Voltage | 32V DC. |
| Input Terminal Rating | 30A max. load per circuit. 30A*10 |
| Output Terminal Rating | N/A |
| Connection Pad Option Available | N/A |
| Fuse Specification | For ATC Blade Fuses Used Only |
| Torque Rating | N/A |
| Mounting Torque Rating | N/A |
| Operating Temperature | -25°C~+85°C |
