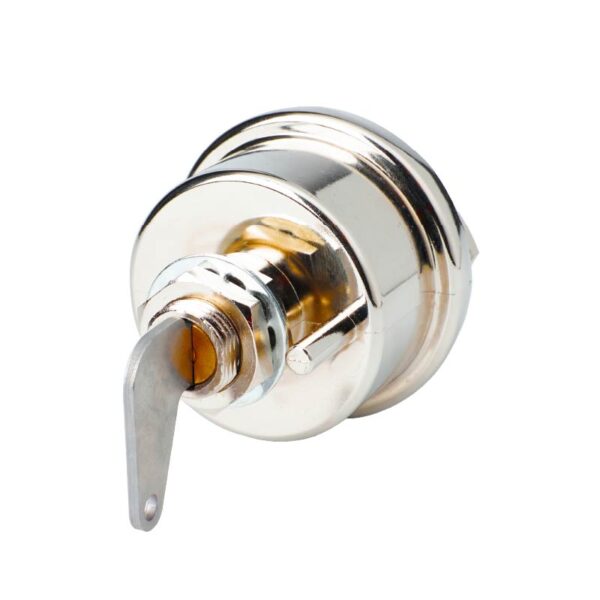

K3-38 Key Switch

1. Classic metal lever design, smooth rotation, stable feel, and provides stable current switching effect
2. Suitable for power starting of special vehicles, construction machinery and golf carts
3. Comply with RoHs standards
Continuous Rating180A 32V DC Max.
Intermittent Rating250 Amps
Cranking Rating1000 Amps 15 sec.
Contact Resistance50m ohm Max
Insulation ResistanceDC 500V 100M ohm Min
Dielectric StrengthAC 1000V 1 minute,
DC 2000V 1 minute
Switch FunctionOFF-ON
Operating Temperature-30°C~+60°C
