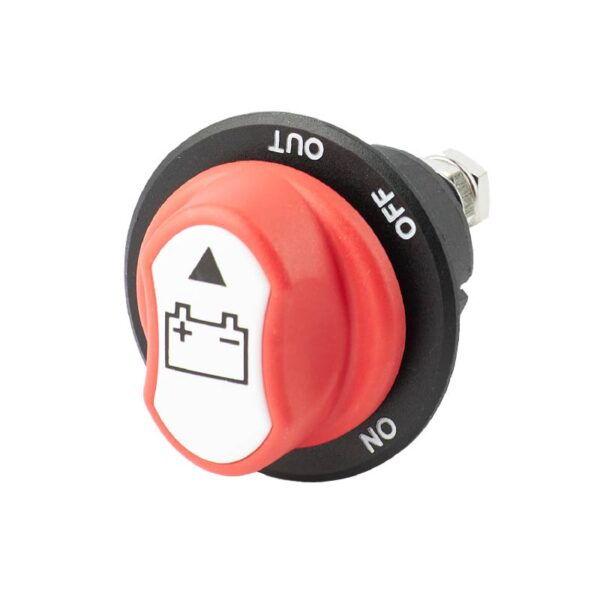

A23-7B 100 Amp Battery Switch

1. 100 Amp battery switch with surface mount and knob removable
2. The protection level above the panel is IP 54
3. The material of the body complies with the UL94V-0
4. Quick and easy power disconnect in case of emergency
5. Suitable for the battery system of marines and campers to control the ON/OFF battery

Add to compare
Add to quote
Voltage Rating32VDC Max
Continuous Rating100Amps
Intermittent Rating150Amp
Cranking Rating500Amps
Operation2P SPST OFF-ON
Degree of ProtectionIP 54
Termination Stud SizeM6xP1.0
