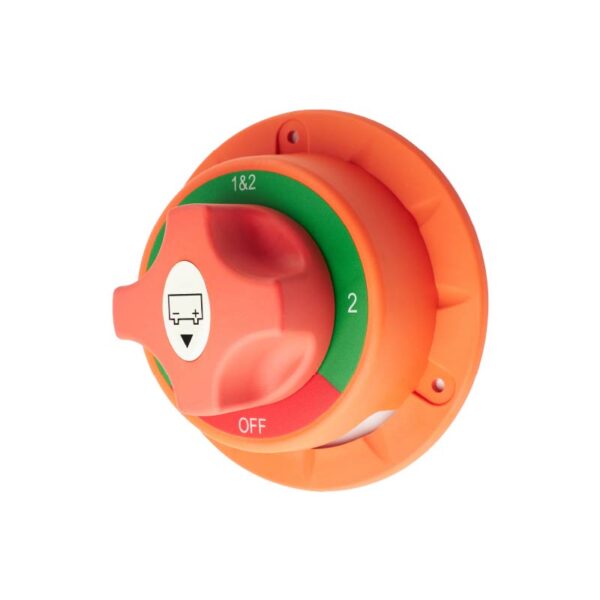

A23-1 200 Amp Battery Switch

1. 200 Amp battery switch with surface mount
2. The protection level above the panel is IP 54
3. The material of the body complies with the UL94V-0
4. Quick and easy power disconnect in case of emergency
5. Suitable for the battery system of marines and campers to control the ON/OFF battery

Voltage Rating6~32VDC
Continuous Rating200Amps
Intermittent Rating300Amps
Cranking Rating1000Amps
OperationOFF/1/1&2
Degree of ProtectionIP 54
Termination Stud Size3/8"-18UNC
