Home / Product / Accessories / R3-82-01-1 10-WAY FUSE BLOCKS

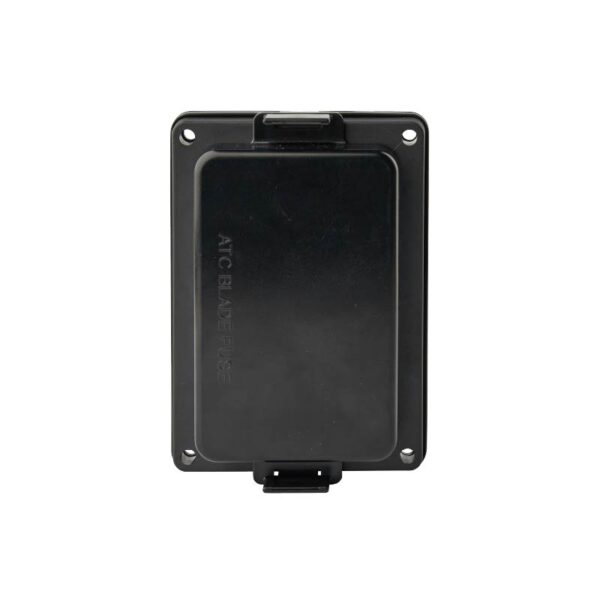

R3-82-01-1 10-WAY FUSE BLOCKS

1. Fuse block is suitable for marines, RVs, or exterior decoration applications, with a transparent protective cover design for waterproof, dustproof, and dirt-proof
2. Red LED indicates when the fuse is broken. Negative bus provides common location for negative collection circuit. It is easy to open by pressing the latch.

Voltage32V DC.
Input Terminal RatingN/A
Output Terminal Rating25A max. load per circuit
Connection Pad Option AvailableN/A
Fuse SpecificationFor ATC Blade Fuses Used Only
Torque RatingN/A
Mounting Torque Rating8 in-lb (0.9Nm) max.
Operating Temperature-25°C~+85°C
