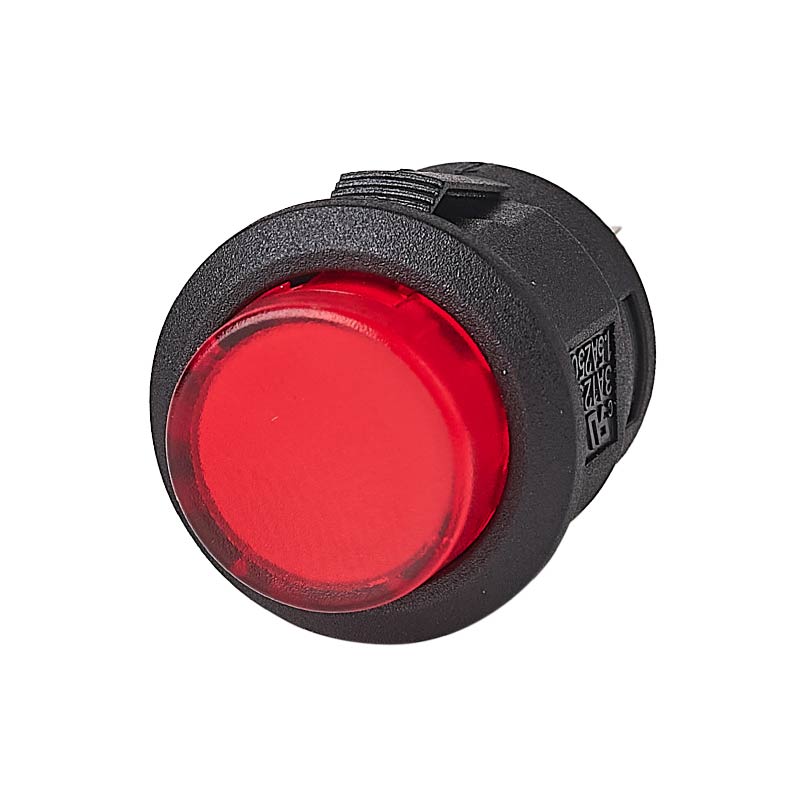

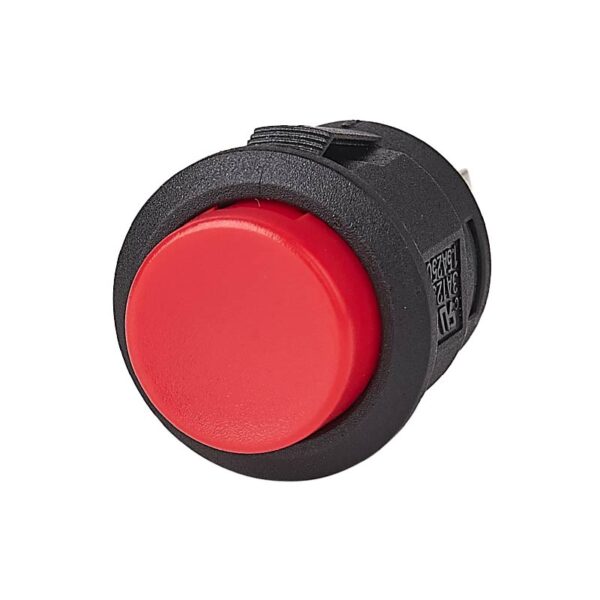

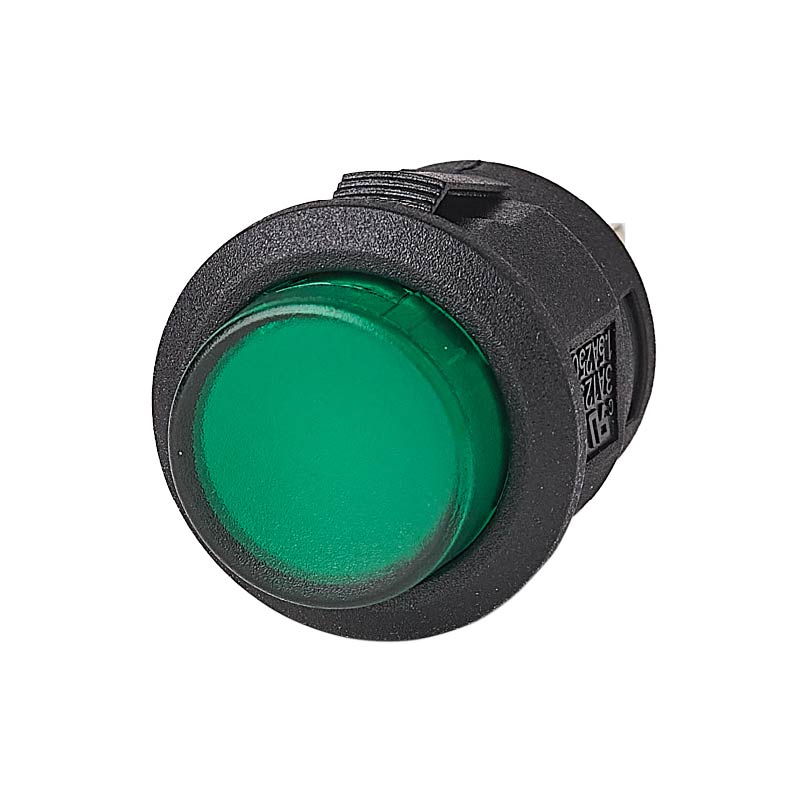

R13-523 Series Push Swith

1. Various choices, complete series, full range of styles, and multiple applications
2. Comply with international safety certification, and RoHs compliant

Add to compare

Add to quote

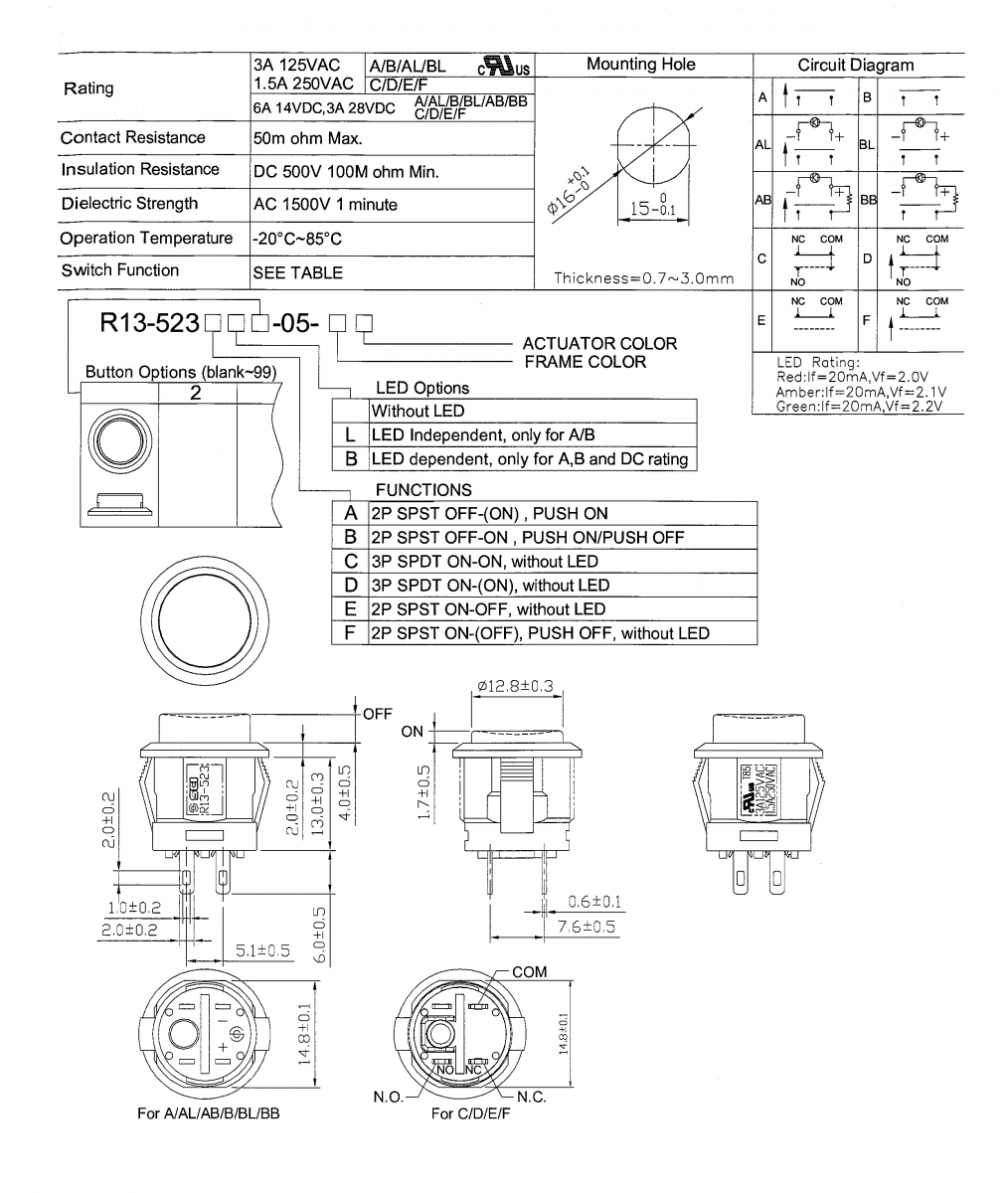

Rating	3A 125V, 1.5A 250V AC
Continuous Rating	50m ohm Max.
Insulation Resistance	DC 500V 100M ohm Min.
Dielectric Strength	AC 1500V 1 minute
Operating Temperature	-20°C~+85°C
Switch Function	2P SPST ON-OFF
