R13-112 Series Rocker Switch
1.Various choices, complete series, full range of styles, and multiple applications
2.Comply with international safety certification, and RoHs compliant
3.Snap-in mounting, easy to install switch into panel.
4.The switch is available in both illuminated and non-illuminated versions. Illuminated actuators are molded in PC, available with red, amber, green, blue and white colors.

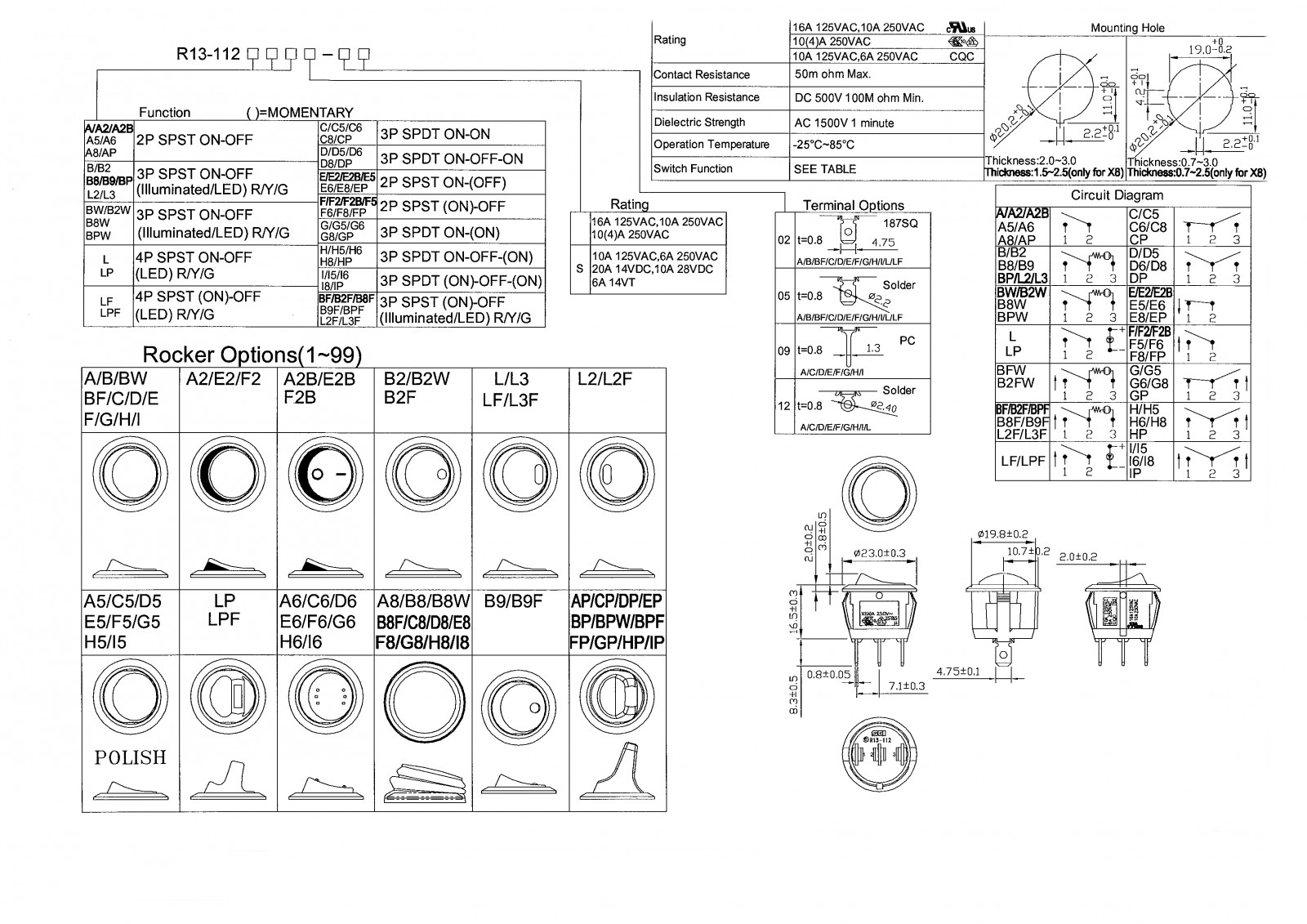

Specifications
Rating | 20A 14V DC, 10A 28V DC, 6A 14VT |
Contact Resistance | 50m ohm Max. |
Insulation Resistance | DC 500V 100M ohm Min. |
Dielectric Strength | AC 1500V 1 minute |
Operating Temperature | -25°C~85°C |
Switch Function | 2P SPST ON-OFF |
