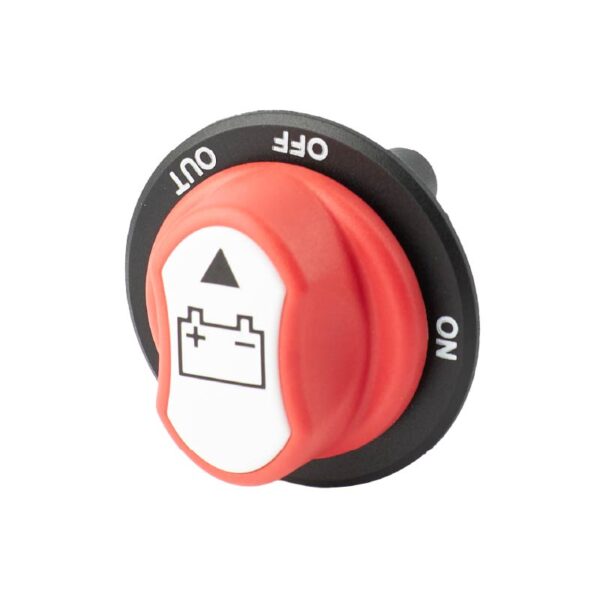

A23-6B 50 Amp Battery Switch

1. 50 Amp battery switch with surface mount and knob removable
2. The protection level above the panel is IP 54
3. The material of the body complies with the UL94V-0
4. Quick and easy power disconnect in case of emergency
5. Suitable for the battery system of marines and campers to control the ON/OFF battery

Voltage Rating50VDC Max.
Continuous Rating50Amps
Intermittent Rating75Amps
Cranking Rating300Amps 5 sec.
Operation2P SPST OFF-ON
Degree of ProtectionIP 54
Termination Stud SizeM4xP0.7
