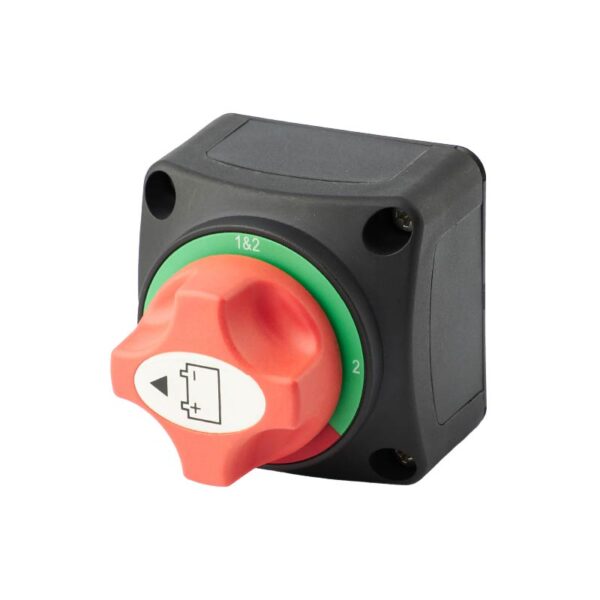

A23-3 100 Amp Battery Switch

1. 100 Amp battery switch with surface mount and knob removable
2. The protection level above the panel is IP 68
3. The material of the body complies with the UL94V-0
4. Quick and easy power disconnect in case of emergency
5. Suitable for the battery system of marines and campers to control the ON/OFF battery

Voltage Rating12~50VDC
Continuous RatingContinuous Rating
Intermittent Rating300Amps
Cranking Rating1000Amps
OperationOFF/1/1&2
Degree of ProtectionIP 68
Termination Stud Size5/16"-18UNC
