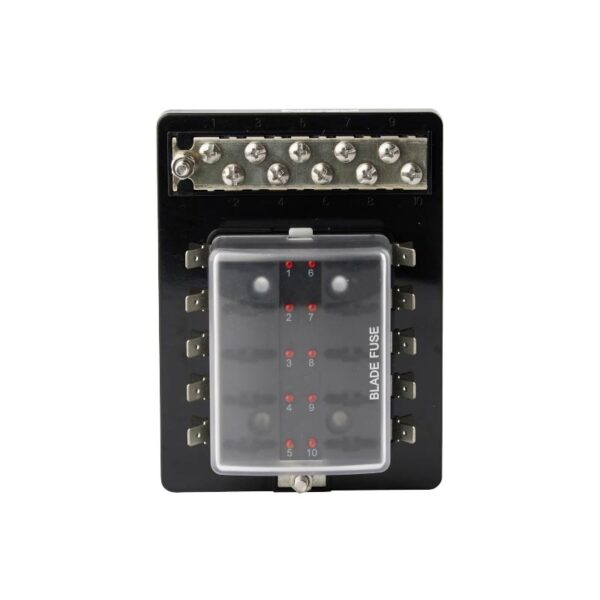

R3-76B-01-07 10-WAY FUSE BLOCKS
1. Fuse block is suitable for marines, RVs, or exterior decoration applications, with a transparent protective cover design for waterproof, dustproof, and dirt-proof
2. Red LED indicates when the fuse is broken. Negative bus provides common location for negative collection circuit. It is easy to open by pressing the latch.
3. Unavailable for US market
2. Red LED indicates when the fuse is broken. Negative bus provides common location for negative collection circuit. It is easy to open by pressing the latch.
3. Unavailable for US market
| Voltage | 32V DC. |
| Input Terminal Rating | M5 threaded studs (100A max.) (100A max. tested by 4 pcs. 25A. load.) |
| Output Terminal Rating | 30A max. per circuit. |
| Connection Pad Option Available | Input wire size：#4-6 AWG. Output wire size：#12-16 AWG. |
| Fuse Specification | For Blade Fuses Used Only |
| Torque Rating | 20 in-lb (2.25Nm) max. |
| Mounting Torque Rating | 8 in-lb (0.9Nm) max. |
| Operating Temperature | -20°C~+85°C |
