R13-706 Series Rotary Switch

1. DC-specific design, suitable for various DC equipment, excellent high voltage resistance.
2. The operation feels good, the rotary design makes pressing and switching feel crisp and powerful.
3. Made of high quality materials, strong durability

Rating21A 14V DC
Contact Resistance50m ohm Max.
Insulation ResistanceDC 500V 100M ohm Min.
Dielectric StrengthAC 1500V 1 minute
Operating Temperature-25°C~+85°C
Switch Function2P SPST or 4P DPST OFF-ON

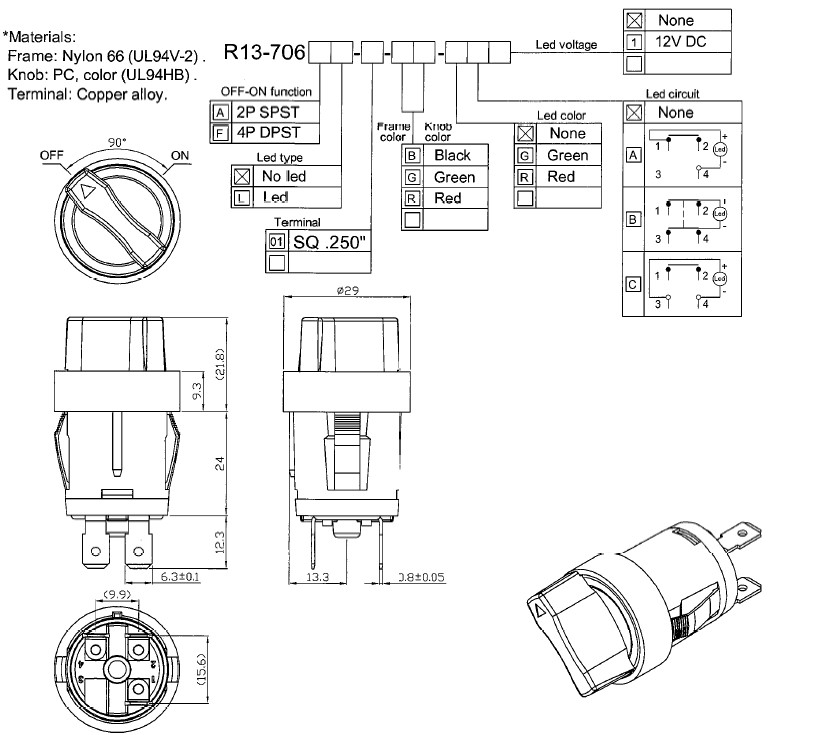

R13-706 rule
