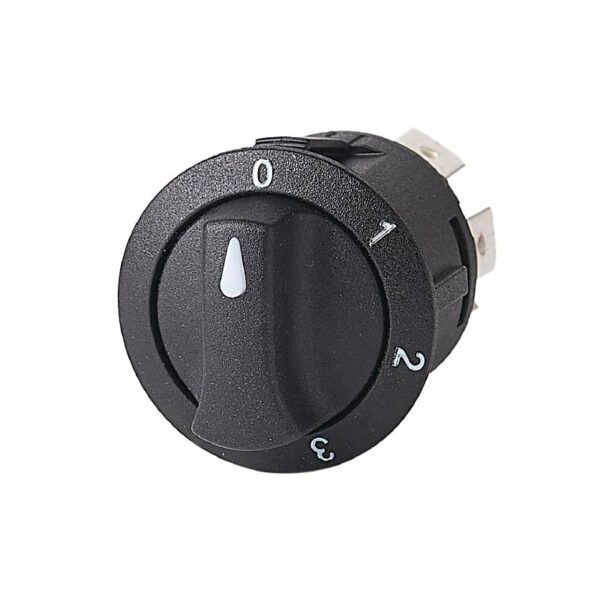

R13-702 Series Rotary Switch OFF-ON-ON-ON

1. DC-specific design, suitable for various DC equipment
2. Comply with RoHs compliant

Rating	20A 14V DC
Contact Resistance	50m ohm Max.
Insulation Resistance	DC 500V 100M ohm Min.
Dielectric Strength	AC 1500V 1 minute
Operating Temperature	-25°C~85°C
Switch Function	6P SPST OFF-ON-ON-ON(LED independent)
