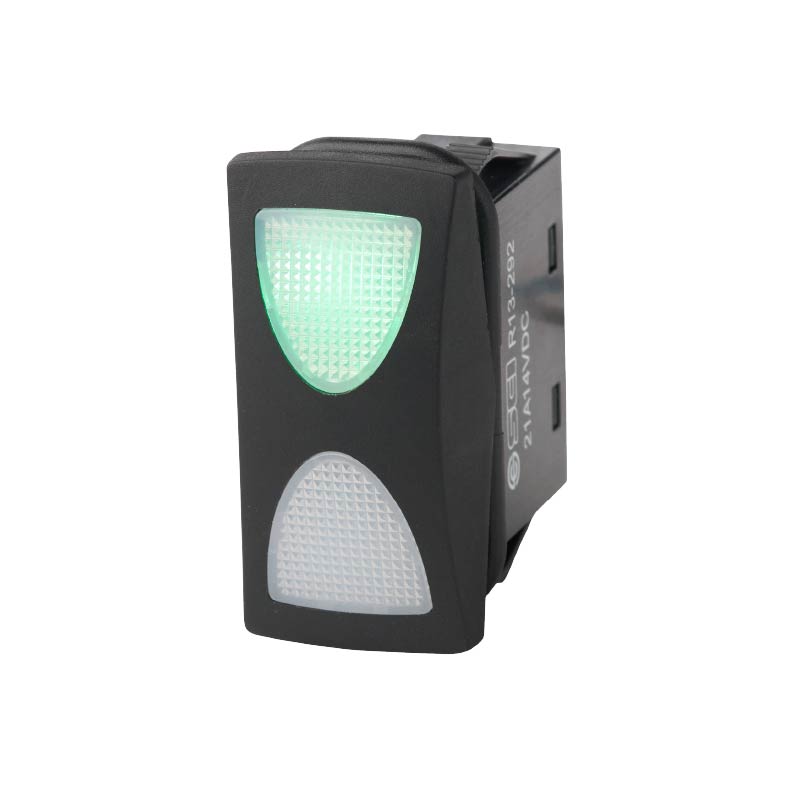

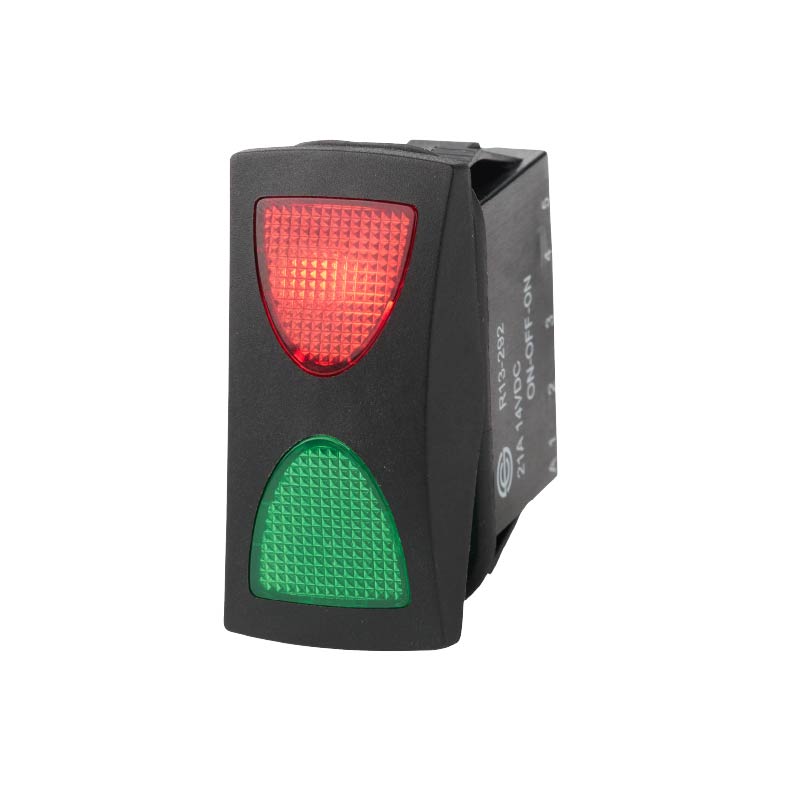

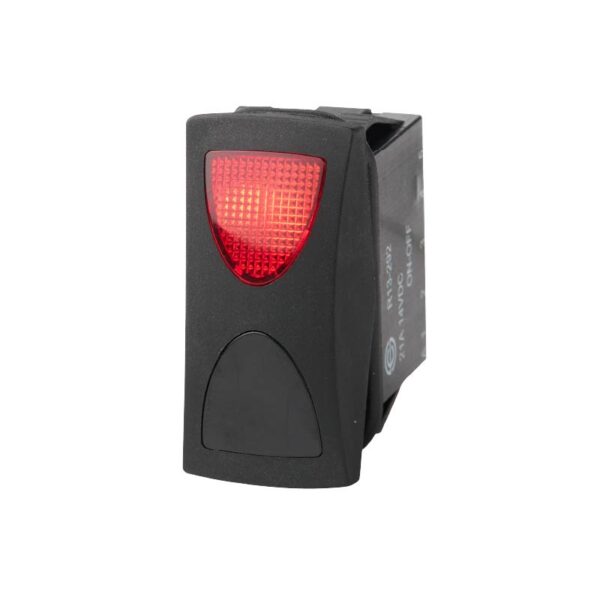

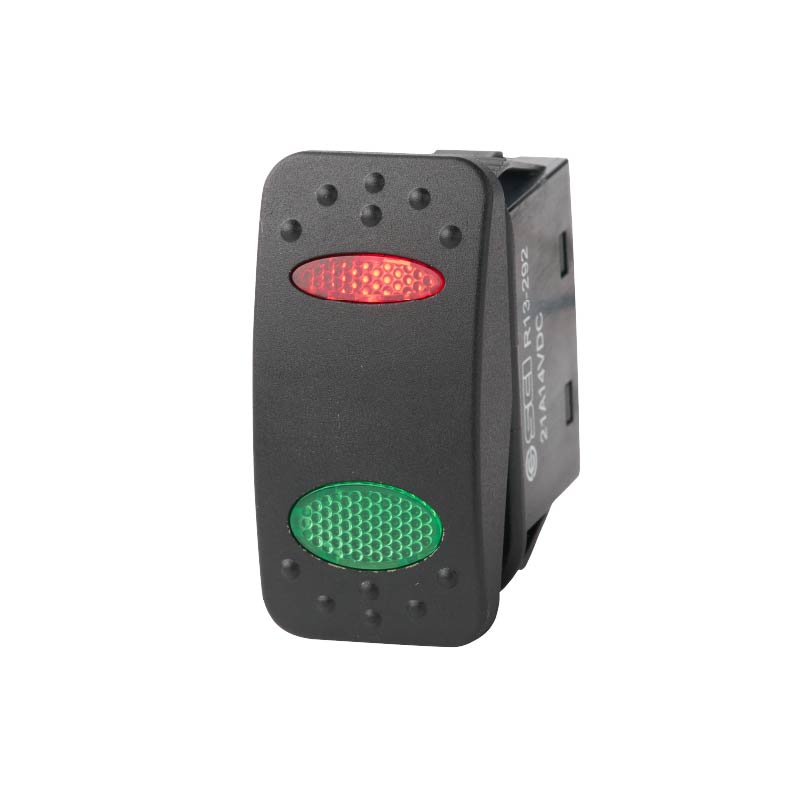

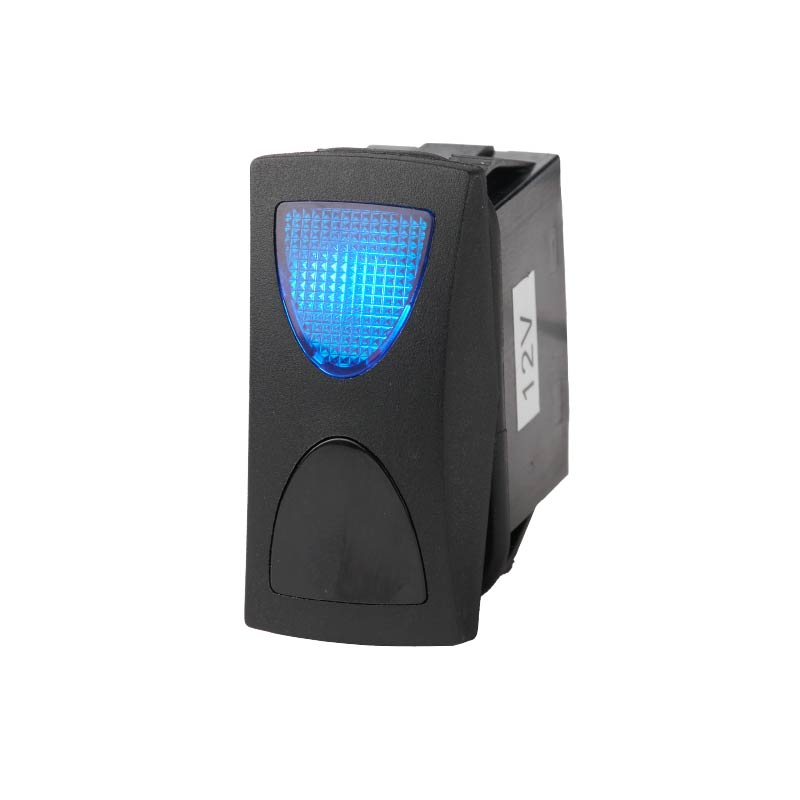

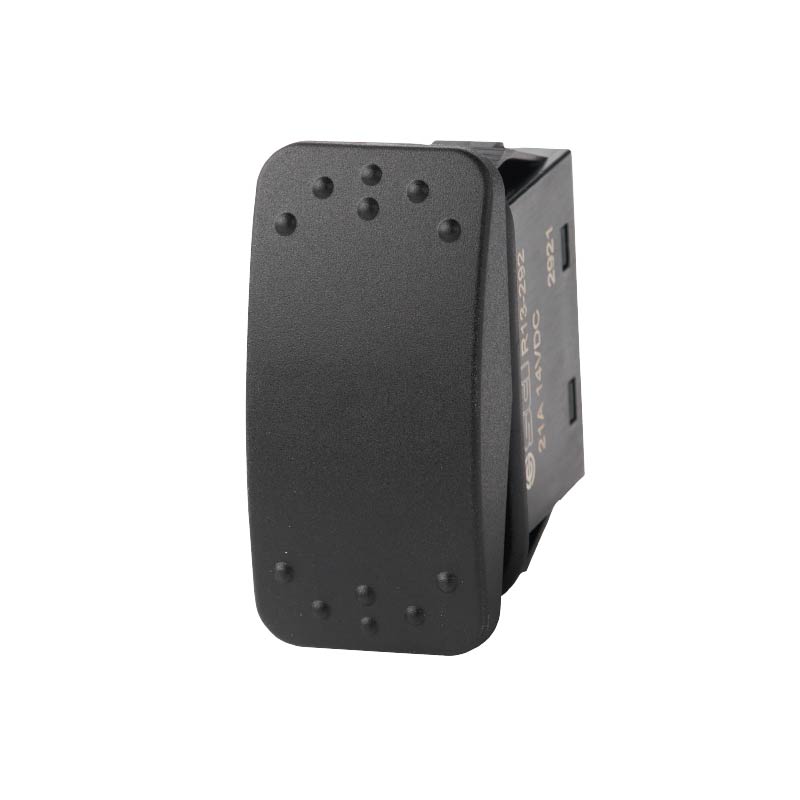

R13-292 Series Rocker Switch Off-On
1. Various choices, complete series, full range of styles, and multiple applications
2. Comply with international safety certification, and RoHs compliant
| Rating | 21A 14VDC |
| Continuous Rating | 50m ohm Max. |
| Insulation Resistance | DC 500V 100M ohm Min. |
| Dielectric Strength | AC 1500V 1 minute |
| Operating Temperature | -25°C~+85°C (R13-292D) -40°C~+85°C (R13-292A、R13-292E、R13-292G ) |
| Switch Function | 2P SPST OFF-ON 2P SPST ON-OFF 3P SPST OFF-ON 4P SPDT ON-OFF-ON(LED dependent) 5P SPDT (ON)-OFF-(ON) 6P DPDT ON-OFF-ON |
