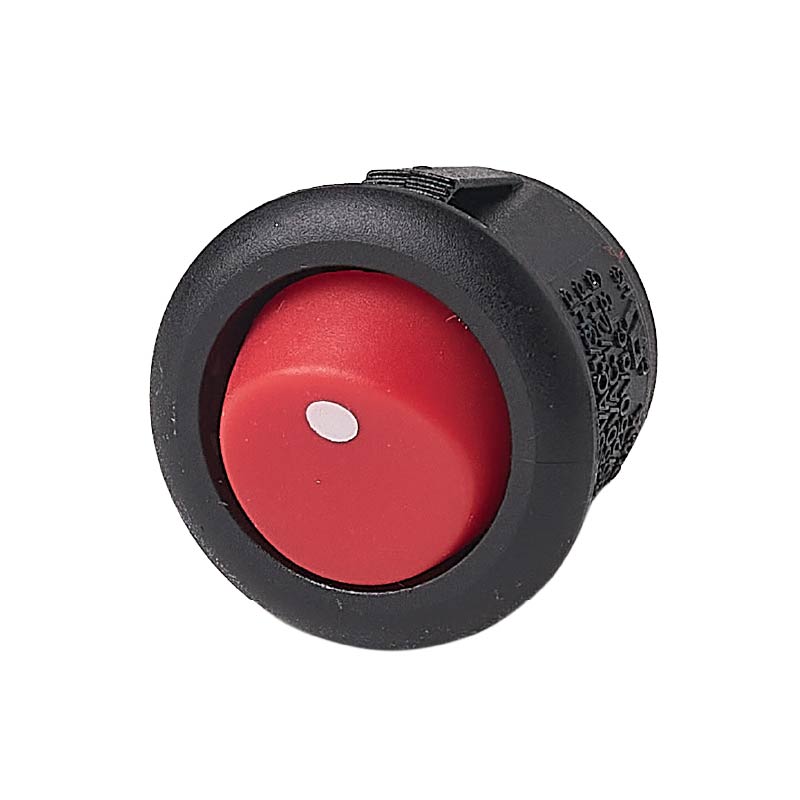

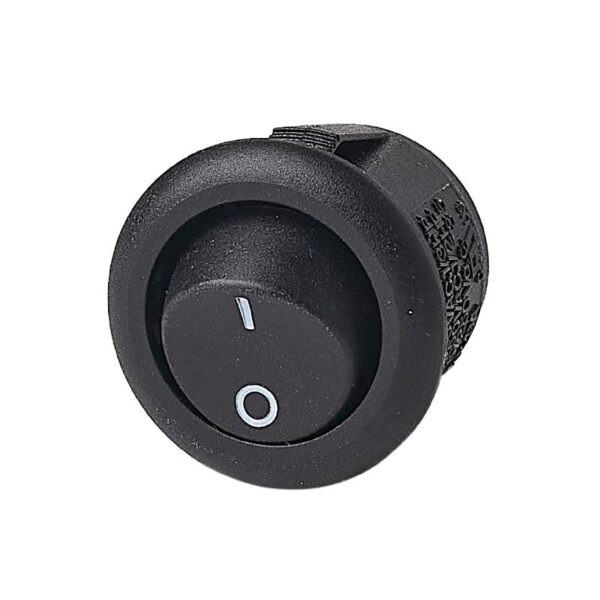

R13-270 Series Rocker Switch Off-On

1. Push button switch for DC and AC
2. Comply with RoHs standards

Add to compare
Add to quote
Specifications
Rating12A125VAC 1/3HP 6A250VAC1/2HP 10(4)A 125/250Aa.c 10(4)A 125/250Va.c
Continuous Rating50m ohm Max.
Insulation ResistanceDC 500V 100M ohm Min.
Dielectric StrengthAC 1500V 1 minute
Operating Temperature-25°C ~ 85°C
Switch Function2P SPST ON-OFF
