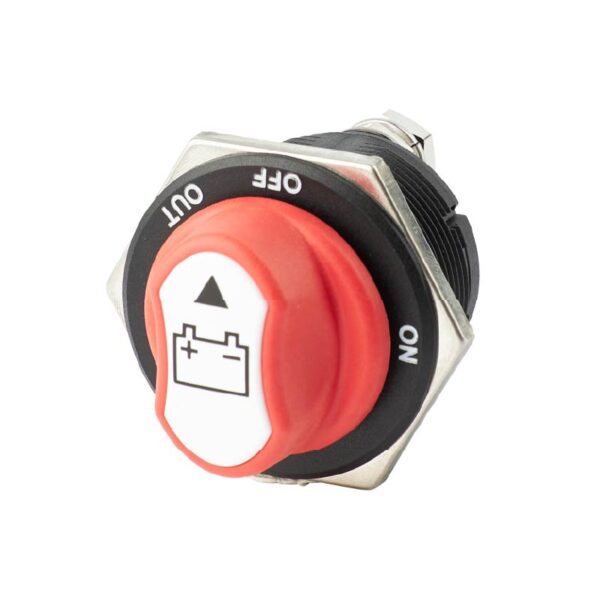

A23-8AB 200 Amp Battery Switch

1. 200 Amp battery switch with surface mount and bolt length 19mm
2. The protection level above the panel is IP 56
3. The material of the body complies with the UL94V-0
4. Quick and easy power disconnect in case of emergency
5. Suitable for the battery system of marines and campers to control the ON/OFF battery

Voltage Rating32VDC Max
Continuous Rating200Amps
Intermittent Rating300Amps
Cranking Rating1000Amps 5 secinds
Operation2P SPST OFF-ON
Degree of ProtectionIP 56
Termination Stud SizeM8xP1.0
