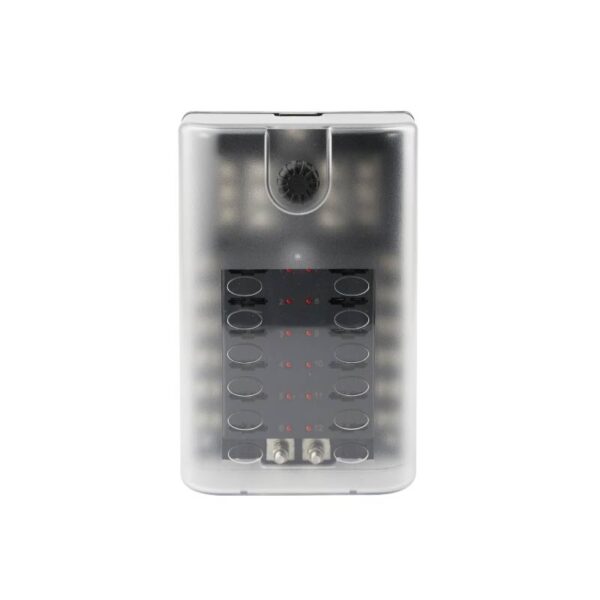

R3-96-07-3 12-WAY FUSE BLOCKS
1. Fuse block is suitable for marines, RVs, or exterior decoration applications, with a transparent protective cover design for waterproof, dustproof, and dirt-proof
2. Red LED indicates when the fuse is broken. Negative bus provides common location for negative collection circuit. It is easy to open by pressing the latch.
| Voltage | 32V DC. |
| Input Terminal Rating | M5 threaded studs (120A max.) |
| Output Terminal Rating | 30A/30A max. load per circuit. |
| Connection Pad Option Available | Input wire size：#4-6 AWG. Output wire size：#12-16 AWG. |
| Fuse Specification | For Blade Fuses Used Only |
| Torque Rating | 20 in-lb (2.25Nm) max. |
| Mounting Torque Rating | 8 in-lb (0.9Nm) max |
| Operating Temperature | -25°C~+85°C |
