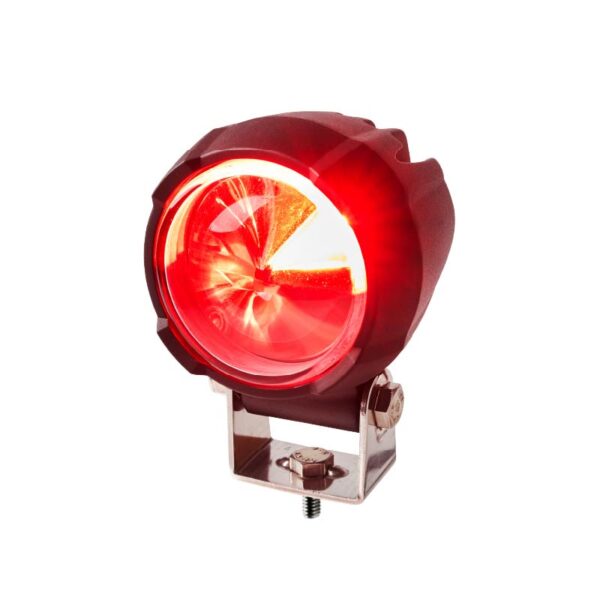

C2-7815 9-64V 85mm Mine Red Safety Lamp

The C2-7815 Mine Red Safety Lamp is a durable and high-visibility warning solution designed for mining vehicles, construction machinery, and heavy equipment. Operating within a wide voltage range of 9–64V, it ensures stable performance across various industrial power systems.

This safety lamp projects a bright red “Keep Out Zone” on the ground, clearly marking hazardous working areas to prevent collisions and injuries. By visually alerting nearby pedestrians and vehicles, it significantly enhances job site awareness and safety.

It is also ideal for excavator applications, projecting the warning zone within the rotation radius to reduce the risk of accidents during operation. The lamp’s robust housing, vibration resistance, and reliable LED performance make it suitable for demanding environments such as open-pit mines and construction sites.

Specifications
Voltage9~80V DC
Body / HousingAluminium
Power Consumption20W
LED Color Temperature615nm
Raw Lumen Output1400Lm
Effective Lumen Output700Lm
IP RatingIP67
Vibration7G
EMCECE R10
Operating Temperatures-30°C~+65°C

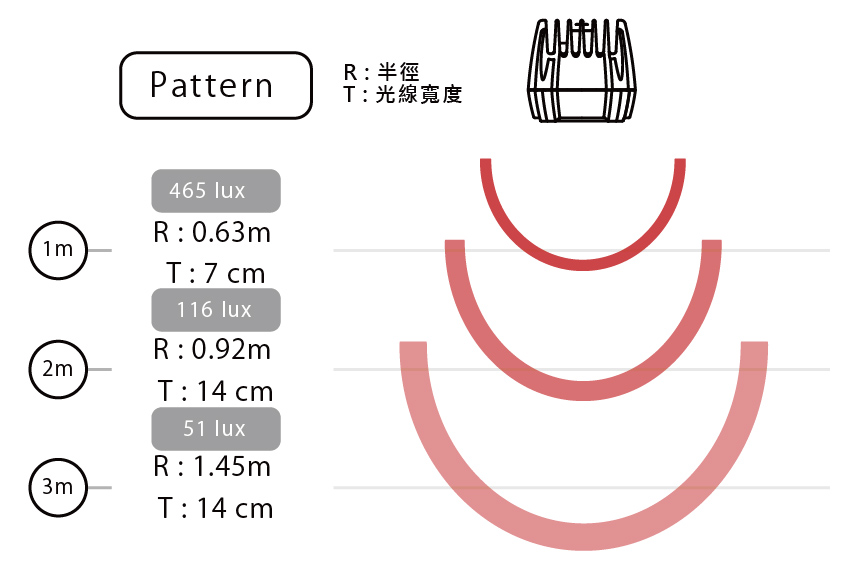

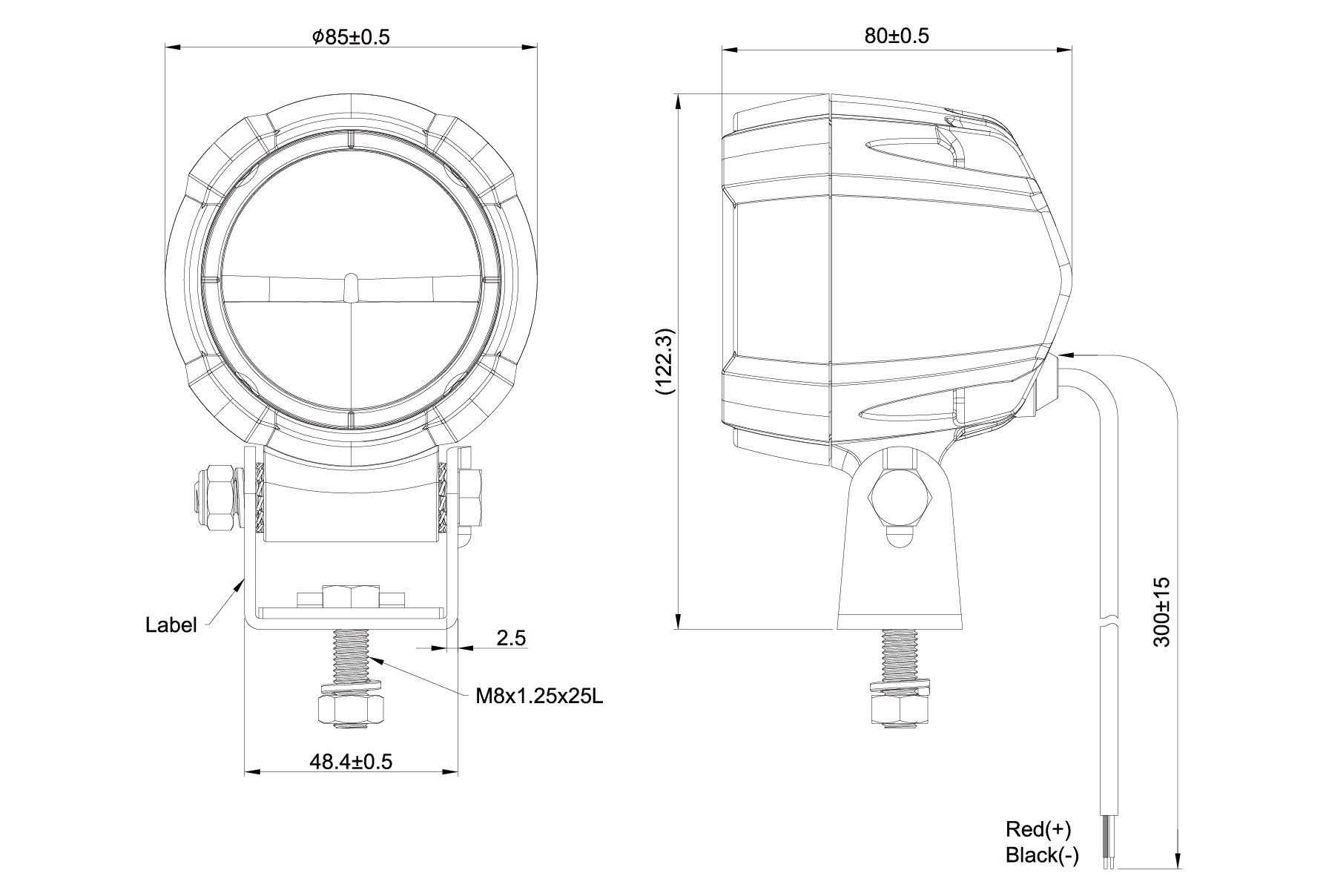

Size Diagram_C2-7815 Red Safety Lamplightmap_C2-7815 Red Safety Lamp
