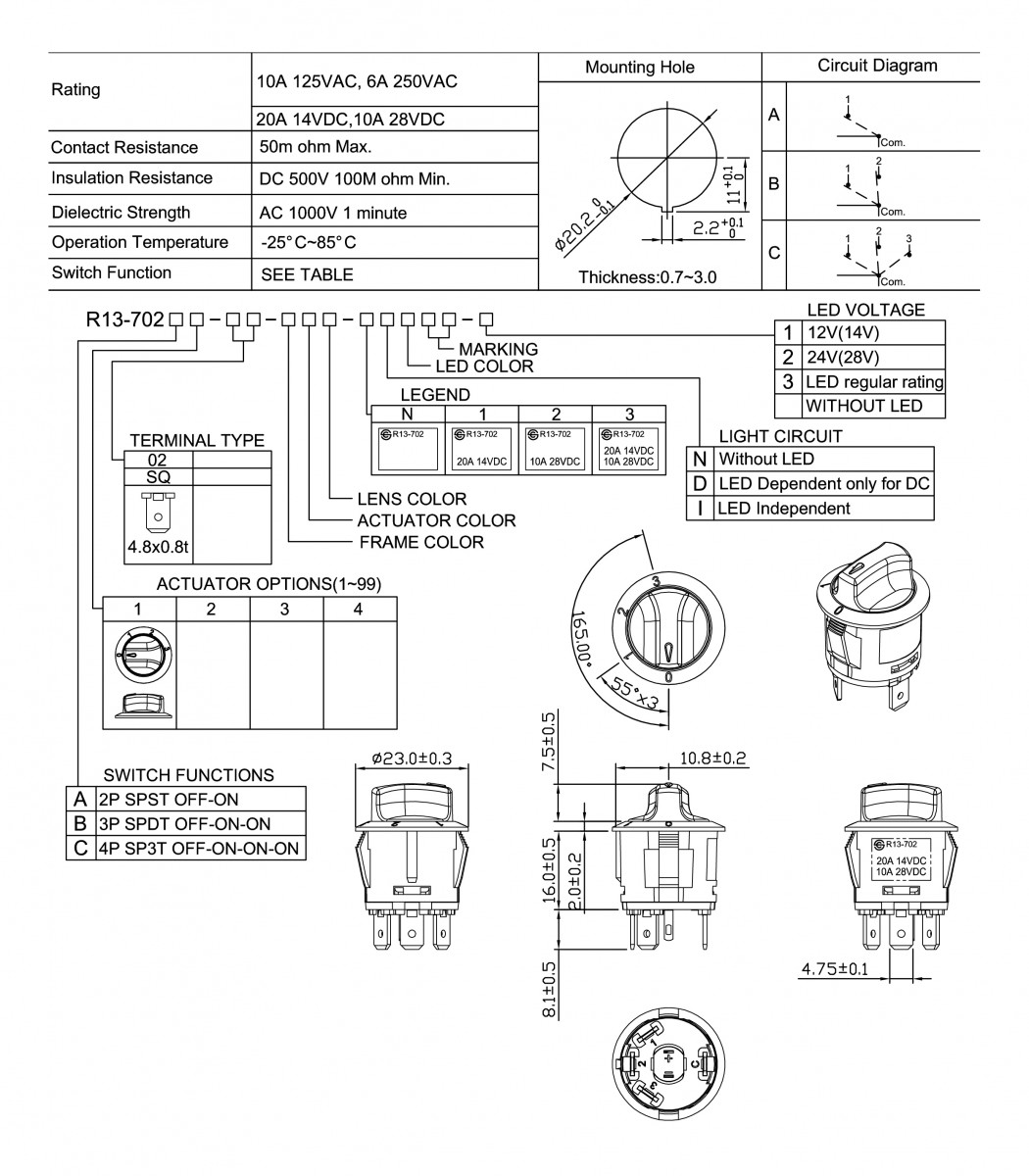

R13-702 Series Rotary Switch

1.AC-specific design, suitable for various AC equipment
2.Comply with RoHs compliant
3.LED can be dependent or independent circuit.

Add to compare
Add to quote
Rating20A 14V DC,
10A 28V DC
Contact Resistance50m ohm Max.
Insulation ResistanceDC 500V 100M ohm Min.
Dielectric StrengthAC 1500V 1 minute
Operating Temperature-25°C~85°C
Switch Function6P SPST OFF-ON-ON-ON(LED independent)
