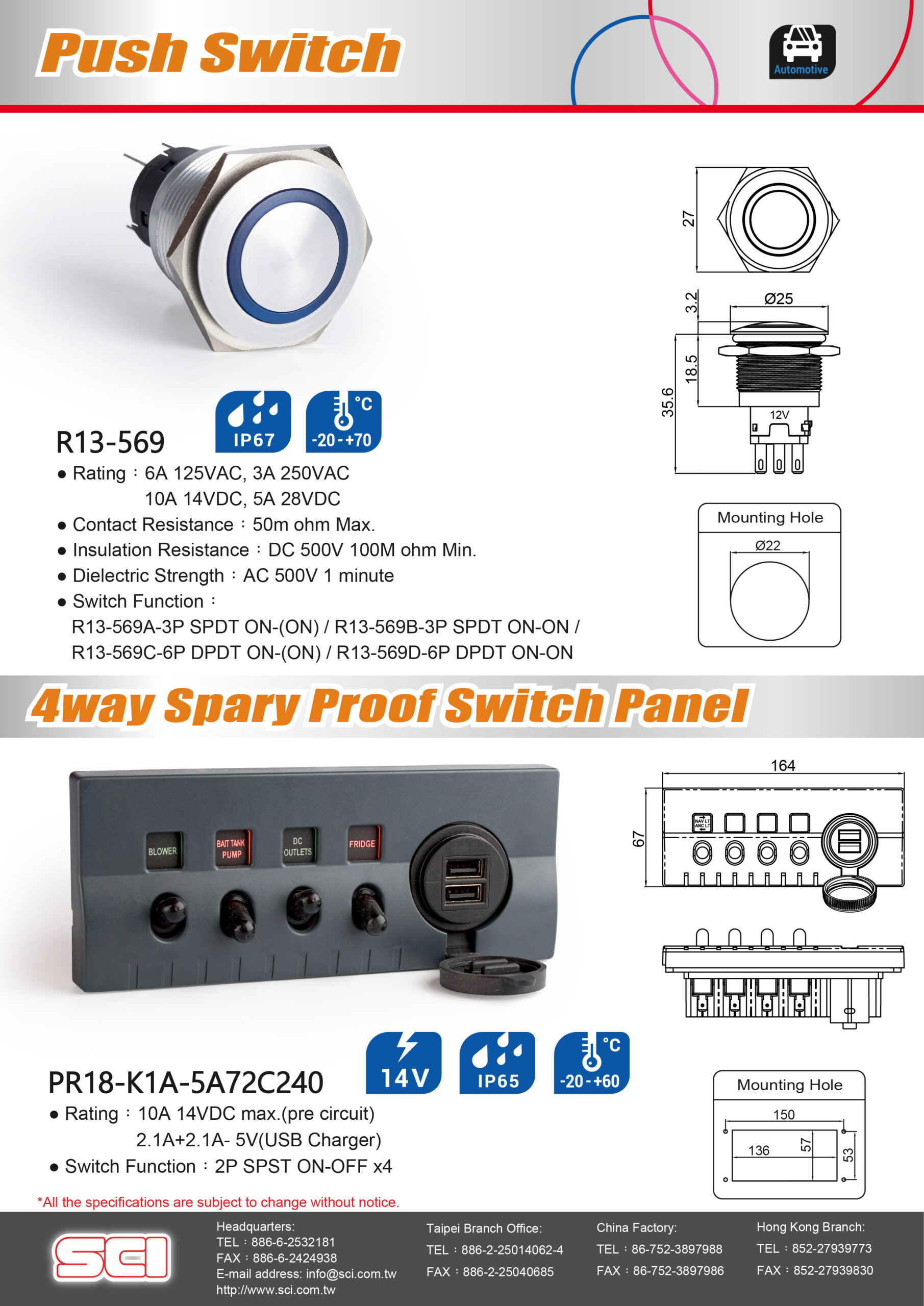

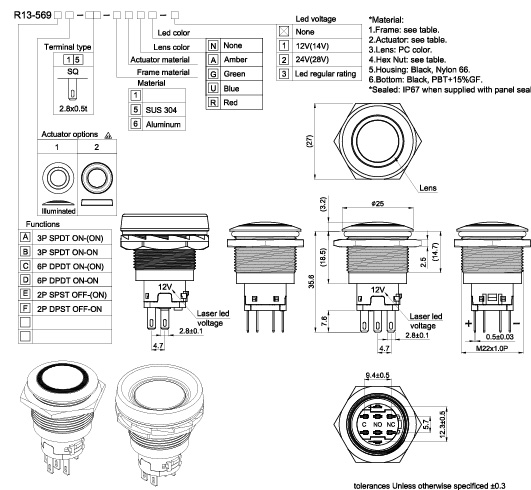

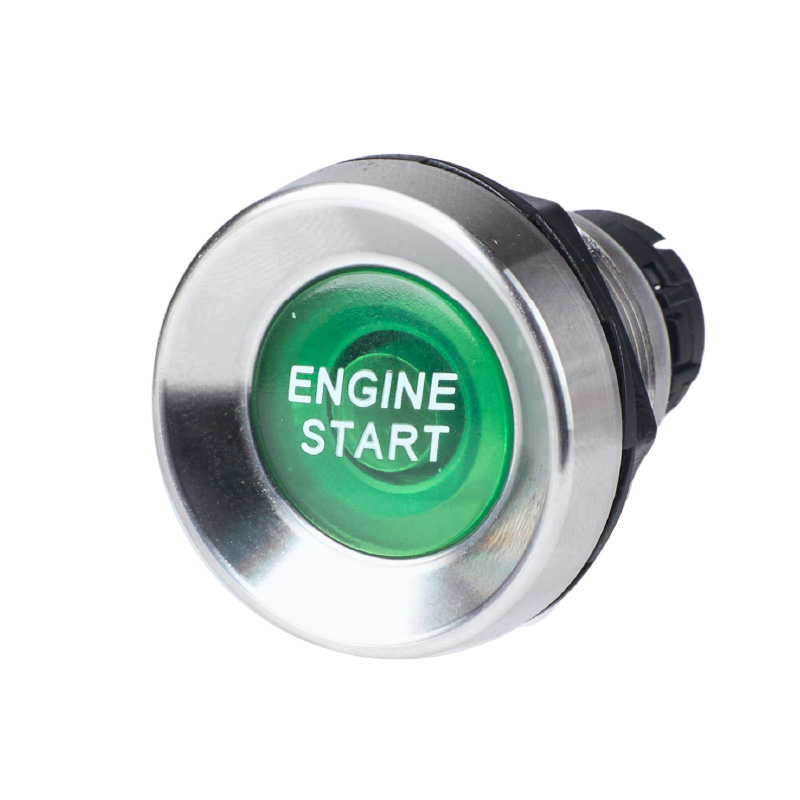

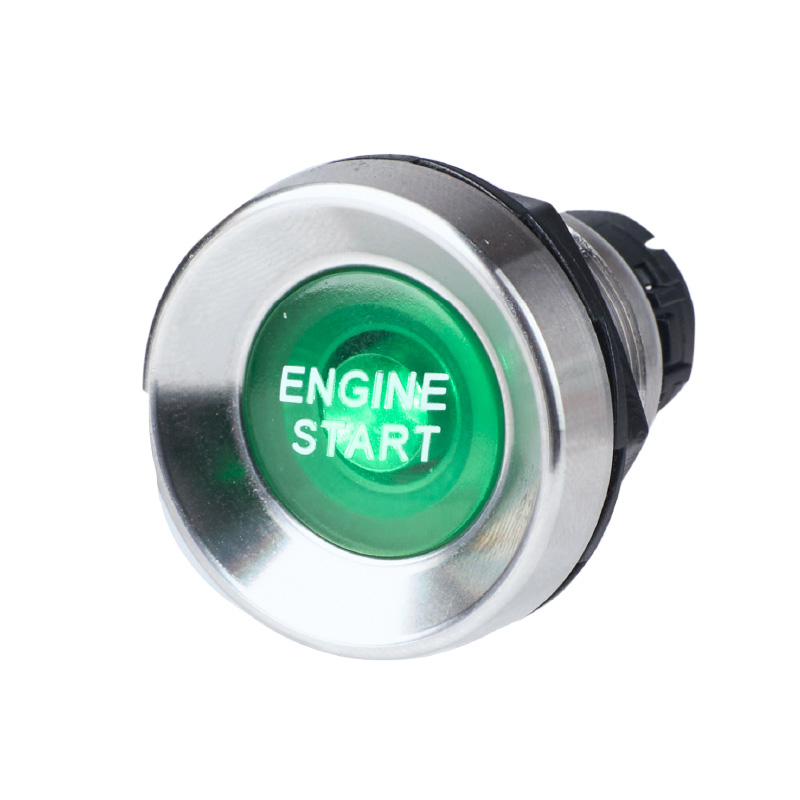

R13-569E 按钮开关
1.适用于直流电与交流电的按钮开关
2.符合RoHs规范
| 额定值 | 10A 14V DC, |
| 连续最大加载 | 50m Ohm Max. |
| 绝缘阻抗 | DC 500V 100M ohm Min. |
| 耐电压 | AC 1500V 1 minute |
| 操作温度 | -20°C~+70°C |
| 开关功能 | 3P SPST OFF-(ON) |
