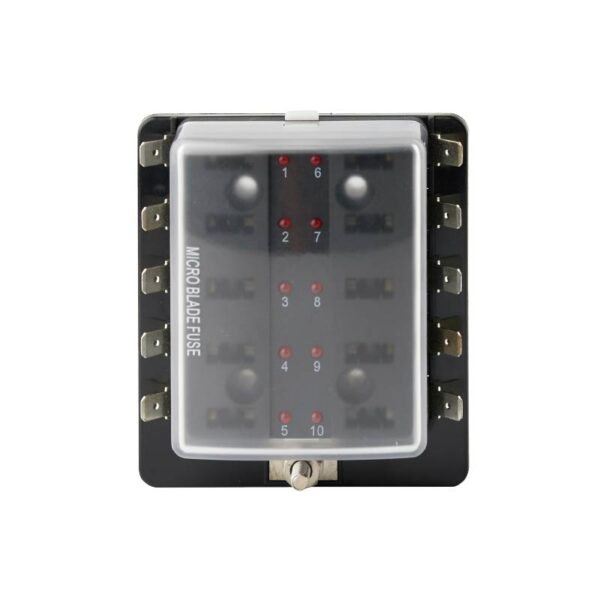

R3-80-01-1 10-WAY FUSE BLOCKS
1. Fuse block is suitable for marines, RVs, or exterior decoration applications, with a transparent protective cover design for waterproof, dustproof, and dirt-proof
2. Red LED indicates when the fuse is broken. Negative bus provides common location for negative collection circuit. It is easy to open by pressing the latch.
| Voltage | 32V DC. |
| Input Terminal Rating | #10-32 threaded studs(100A max.) |
| Output Terminal Rating | 30A max. per circuit. |
| Connection Pad Option Available | Input wire size：#4-6 AWG. Output wire size：#12-16 AWG. |
| Fuse Specification | For Micro Blade Fuses Used Only |
| Torque Rating | 20 in-lb (2.25Nm) max. |
| Mounting Torque Rating | 8 in-lb (0.9Nm) max. |
| Operating Temperature | -20°C~+85°C |
