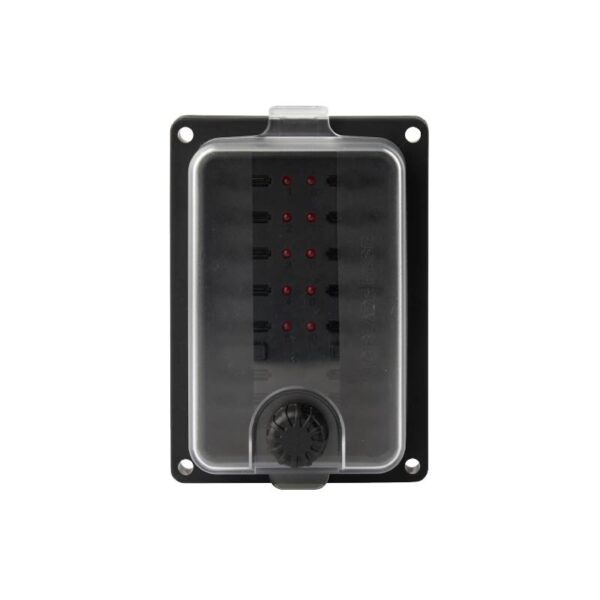

R3-83-01-1 10-WAY FUSE BLOCKS

1. Fuse block is suitable for marines, RVs, or exterior decoration applications, with a transparent protective cover design for waterproof, dustproof, and dirt-proof
2. Red LED indicates when the fuse is broken. Negative bus provides common location for negative collection circuit. It is easy to open by pressing the latch.

Add to compare

Add to quote

Voltage	32V DC.
Input Terminal Rating	N/A
Output Terminal Rating	25A max. load per circuit.
Connection Pad Option Available	N/A
Fuse Specification	For ATC Blade Fuses Used Only
Torque Rating	N/A
Mounting Torque Rating	8 in-lb (0.9Nm) max.
Operating Temperature	-25°C~+85°C
