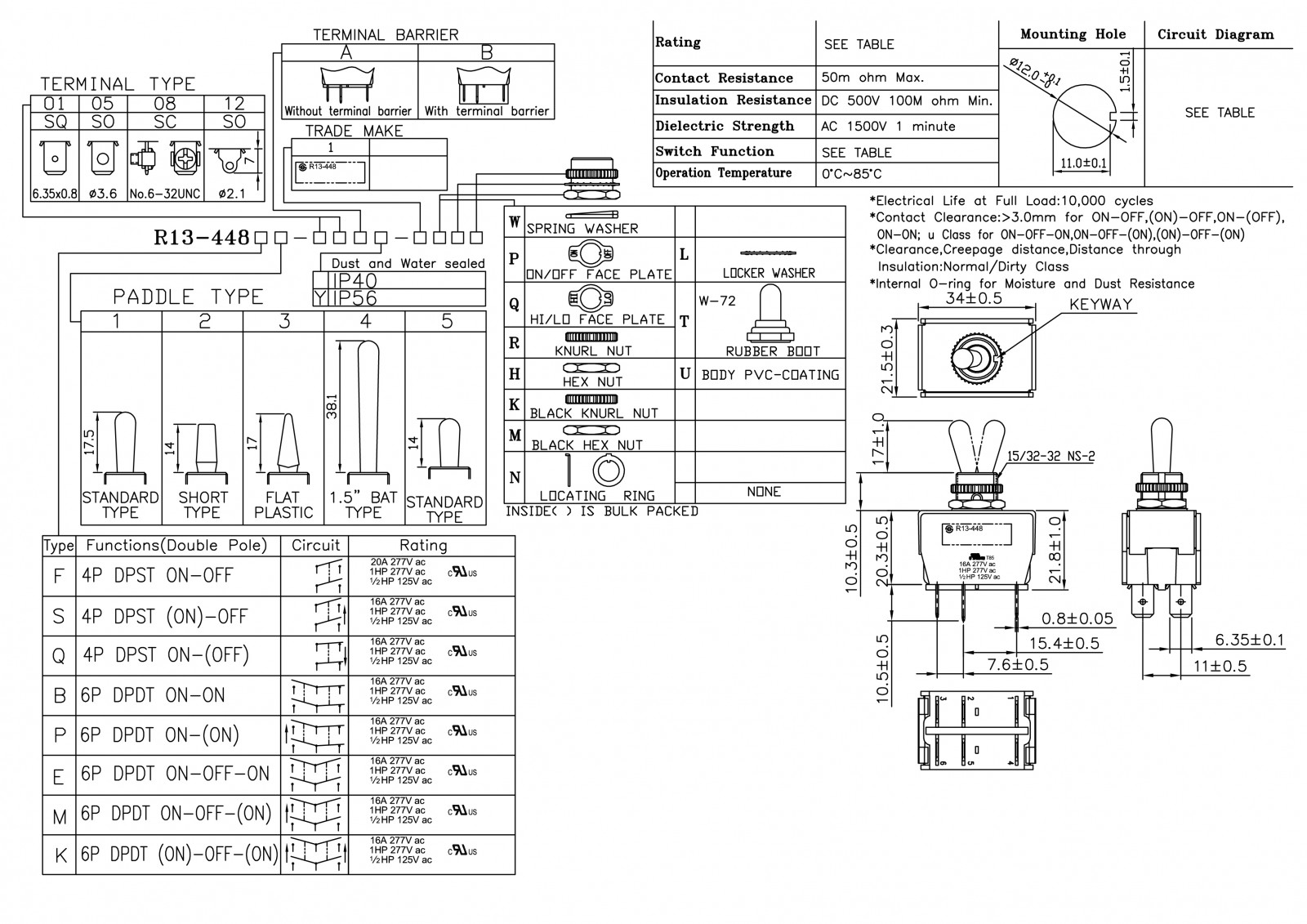

R13-448 Series Toggle Switch

1. Various choices, complete series, full range of styles, and multiple applications
2. Comply with international safety certification, and RoHs compliant

Add to compare
Add to quote
Rating16A 227V AC,
1HP/2HP 125V AC,
20A 277V AC,
1HP/2HP 125V AC,
16(4) 250V AC,
12(4) 250V AC
Continuous Rating50m ohm Max.
Insulation ResistanceDC 500V 100M ohm Min.
Dielectric StrengthAC 1500V 1 minute
Operating Temperature-0°C~+85°C
Switch Function6P DPDT ON-ON
