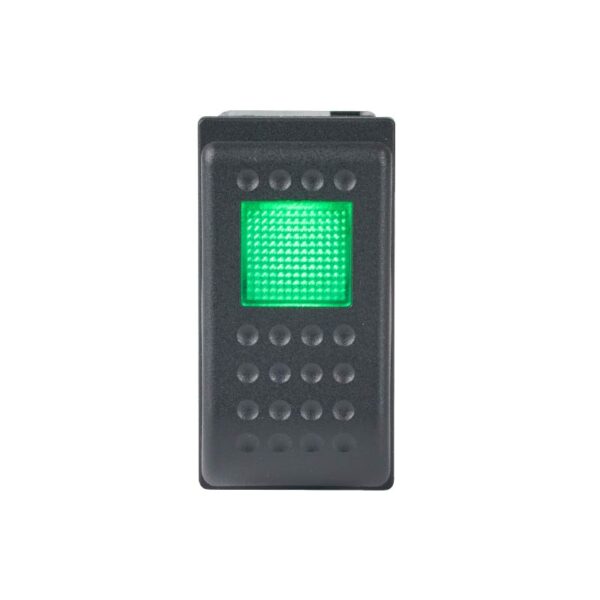

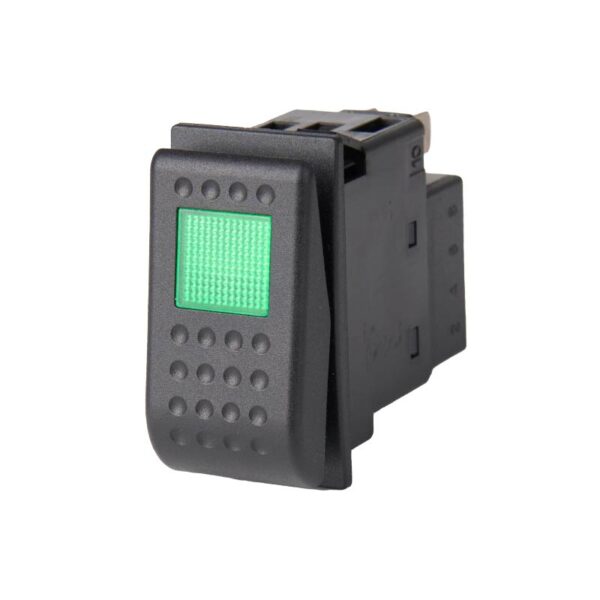

R13-289 Series Rocker Switch

1.Various choices, complete series, full range of styles, and multiple applications
2.Comply with RoHs compliant

Add to compare
Add to quote
Rating20A 14V DC,
10A 28V DC
Contact Resistance50m ohm Max.
Insulation ResistanceDC 500V 100M ohm Min.
Dielectric StrengthAC 1500V 1 minute
Operating Temperature-25°C~85°C
Switch Function4P SPST ON-OFF(2 LED）
